Before you load up your truck and hit the road, it's critical to answer one question: how much can I haul? The advertised towing capacity is rarely the real-world answer. Your true hauling capability is a careful calculation involving what you carry in your vehicle (payload) and what you pull behind it (trailer weight).
Mastering this comes down to a few key numbers, all conveniently printed on a sticker inside your vehicle's driver-side door. This guide will provide the actionable insights you need to transport your load safely and legally.
Your Quick Guide to Safe Hauling Limits
Determining your truck's real-world hauling limit can feel like deciphering a secret code of acronyms and numbers. However, understanding these terms is the most important step you can take for a safe and successful transport mission.
Exceeding your vehicle's limits isn't a minor oversight—it's a major safety risk. Overloading compromises your vehicle’s fundamental ability to steer and brake, puts immense strain on the frame and suspension, and can lead to catastrophic failure of the engine, transmission, or tires. The result is often expensive repairs and dangerous situations on the road.
Why Manufacturer Ratings Matter
The ratings on your door jamb sticker—specifically the GVWR (Gross Vehicle Weight Rating) and GCWR (Gross Combined Weight Rating)—are not suggestions. They are the absolute safety limits established by the engineers who designed your vehicle.
Think of it like the load limit on an elevator. Ignoring it puts the entire system, and everyone involved, at risk. Adhering to these ratings is a non-negotiable part of safe transport that allows you to:
- Maintain Control: Staying within your weight limits ensures your vehicle remains stable and predictable, especially during sudden maneuvers or in adverse weather.
- Stop Effectively: An overloaded vehicle requires a significantly longer braking distance. Respecting weight ratings ensures you can stop in time to prevent a collision.
- Protect Your Vehicle: Operating within specifications prevents premature wear and tear, protects your warranty, and maintains your truck's value.
Understanding your true hauling capacity is the foundation of safe transport. It eliminates guesswork and transforms a potentially hazardous trip into a controlled, professional haul, protecting you, your cargo, and others on the road.
For complex or heavy loads, leveraging professional expertise is the smartest move. You can learn more about professional services for hauling trailers to ensure your cargo is transported efficiently and safely.
Next, we'll break down exactly where to find these critical ratings and how to use them to calculate your specific, real-world hauling limit.
So, how much can you really haul? The answer is a set of hard numbers found on the Federal Motor Vehicle Safety Standard (FMVSS) sticker, usually located inside the driver's side doorjamb.
This sticker is the definitive source for your truck's transport limitations. It provides the real-world numbers you must know for safe and legal towing. Mastering these terms is your first actionable step.
These ratings represent the maximum load your vehicle's frame, brakes, and suspension were engineered to handle. Ignoring them is a gamble with your safety and your equipment.
Gross Vehicle Weight Rating (GVWR)
The first critical number is the Gross Vehicle Weight Rating (GVWR). This is the absolute maximum weight of your fully loaded truck. This includes the truck itself (curb weight), fuel, all passengers, all cargo in the cab and bed, and the trailer's tongue weight pushing down on the hitch.
Actionable Insight: The most practical way to think about GVWR is as your truck's total operating weight limit. Before any trip, estimate the weight of all passengers and cargo. If you are anywhere close to the limit, the only way to be certain is to weigh your fully loaded truck at a certified scale.
Exceeding the GVWR means your vehicle is officially overloaded, compromising its structural integrity and safety systems.
The All-In Number: Gross Combined Weight Rating (GCWR)
Next is the Gross Combined Weight Rating (GCWR). This is the maximum allowable weight of your fully loaded truck and your fully loaded trailer combined. It is the total weight of your entire rig rolling down the highway.
The GCWR ensures your engine has the power to pull the entire load and, crucially, that your brakes can safely stop it. This total system weight dictates your ability to manage highway speeds, climb grades, and execute emergency stops.
Axle Ratings and the Art of Balance
Finally, the sticker lists the Gross Axle Weight Ratings (GAWR) for both the front and rear axles. These specify the maximum weight each axle can support.
Proper transport isn't just about total weight; it's about weight distribution. A poorly balanced load can overload the rear axle, causing the front of the truck to become dangerously light, which severely impairs steering and braking. The GAWR forces you to distribute cargo correctly to maintain stability and control.
This principle of managing capacity is universal in transport. The Mediterranean Shipping Company (MSC) manages a fleet of over 930 vessels with a combined capacity of 6.76 million TEU as of August 2025. This massive operation is a testament to the fact that whether you're hauling a small trailer or managing global logistics, respecting weight limits is the key to safe and successful transport. You can see more on these global shipping capacity trends on AXSMarine.
How to Calculate Your True Payload Capacity
Calculating your truck's true payload capacity is more than just checking a brochure. The real number—the one that ensures safety and legality—must account for every pound added to the vehicle after it left the factory. This includes all passengers, pets, tools, gear, and the downward force of a trailer's tongue weight.
The calculation is straightforward and essential for any hauling task. It's based on one non-negotiable formula:
GVWR – Curb Weight = Maximum Payload Capacity
This formula tells you the absolute maximum weight your truck's chassis, suspension, and tires were built to handle. Exceeding this limit is a direct safety threat that can lead to brake failure, suspension damage, or a complete loss of control.

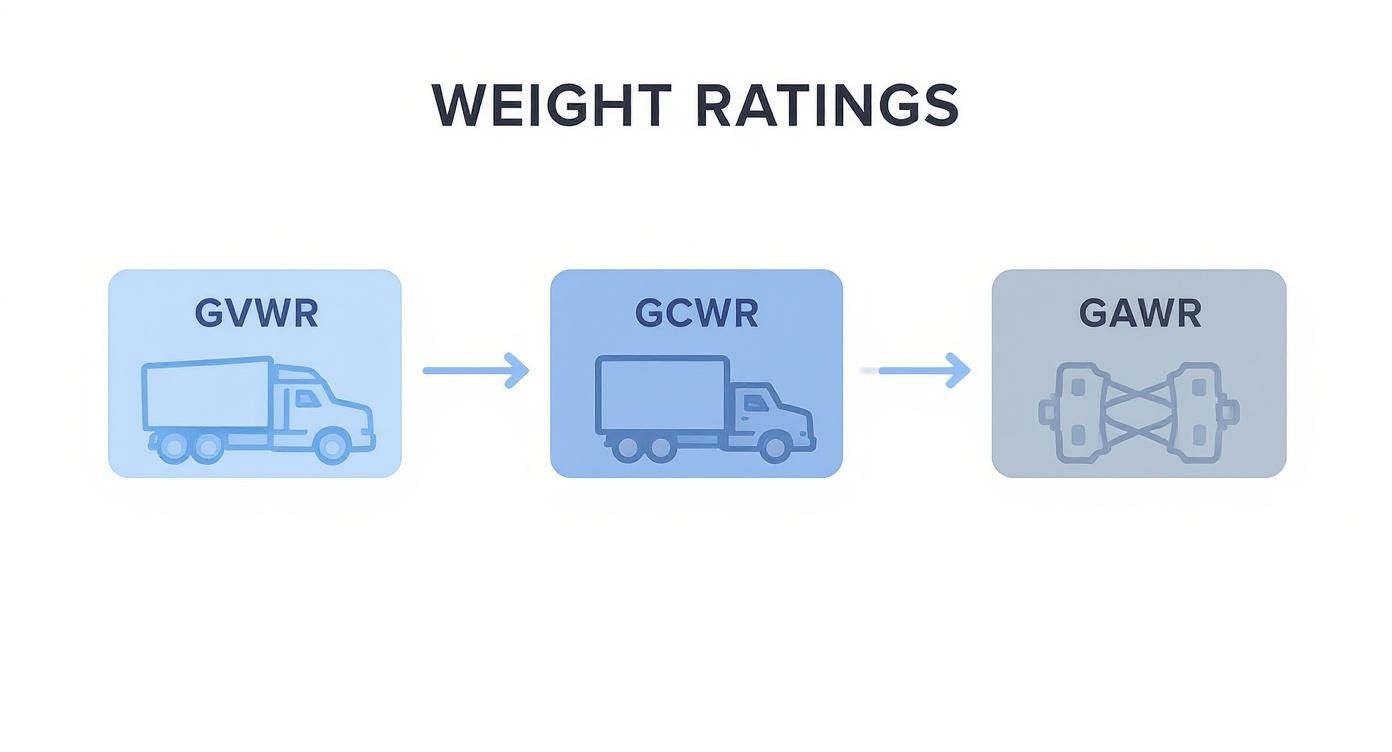

This infographic provides a clear visual breakdown of the key weight ratings involved in any transport calculation.
As shown, each rating—GVWR, GCWR, and GAWR—is a crucial piece of the overall safety puzzle, defining the limits for your truck and the entire rig.
A Real-World Payload Scenario
Let's apply this with a practical example. Imagine you're preparing for a construction job.
Your truck has a GVWR of 7,000 lbs and a curb weight of 5,000 lbs. The formula (7,000 – 5,000) gives you a maximum payload of 2,000 lbs.
Now, let's calculate your actual load:
- You and Your Crew: You and a coworker together weigh 400 lbs.
- Gear in the Cab: Laptops, plans, and personal gear add 50 lbs.
- Cargo in the Bed: Tools and materials in the bed weigh 800 lbs.
- Trailer Tongue Weight: You're pulling a small equipment trailer with a tongue weight of 500 lbs.
Let's add it all up: 400 + 50 + 800 + 500 = 1,750 lbs.
You have loaded 1,750 lbs onto your truck, leaving you with only 250 lbs of remaining payload capacity. This demonstrates how quickly your available payload is consumed, especially when factoring in trailer tongue weight. For truly heavy equipment, professional https://www.wewilltransportit.com/hauling-trucks/ provide a safer, more reliable transport solution.
This type of weight management is a core principle in all forms of transport, including assessing the capacity of a vessel for living aboard, where balancing weight is paramount for stability and safety at sea.
Figuring Out Your True Towing Capacity
The maximum towing capacity advertised for a truck is a theoretical number achieved under ideal, empty conditions. In the real world, every single pound you add to your truck—from passengers to cargo—directly reduces the amount you can safely tow.
Your truck’s Gross Combined Weight Rating (GCWR) is your total weight budget. The weight of your loaded truck is the first deduction from that budget. The remaining amount is your actual, real-world towing capacity.
The Only Towing Formula You Really Need
To bypass marketing figures and determine your true towing limit, use this essential formula. This is the calculation that ensures your transport is both safe and legal.
GCWR – Loaded Vehicle Weight = Maximum Loaded Trailer Weight
This equation provides the definitive answer to "How much can I haul?" Exceeding your GCWR, GVWR, or GAWR is not just ill-advised; it is dangerous and illegal.
Let's use a practical example. A landscaper is preparing for a job. Their truck has a GCWR of 15,000 lbs. After loading a two-person crew, tools, and a full tank of fuel, they weigh the truck at a CAT scale, and it comes in at 6,500 lbs.
Applying the formula: 15,000 lbs (GCWR) – 6,500 lbs (Loaded Truck) = 8,500 lbs.
The absolute maximum weight of their fully loaded trailer cannot exceed 8,500 lbs. It doesn't matter if the truck was advertised to tow 10,000 lbs; the 1,500 lbs of crew and gear reduced that capacity. For heavy or specialized equipment, using professional utility trailer transport services is the most reliable and safe course of action.
The Key to a Stable Ride: Tongue Weight
Once you've determined your maximum trailer weight, the final critical factor is tongue weight. This is the downward force the trailer applies to your truck's hitch, and it is the key to preventing dangerous trailer sway.
For stable towing, your tongue weight must be 10-15% of the total loaded trailer weight.
- Actionable Tip: To check tongue weight, you can use a specialized scale or a simple bathroom scale for lighter trailers. A common method involves using the scale and a lever system with a pipe and wood blocks to get an accurate reading.
- Too light: Results in an unstable, "squirrely" trailer that is prone to fishtailing.
- Too heavy: Overloads the truck's rear axle, lifting the front wheels and severely compromising steering and braking.
For the 8,500 lb trailer in our example, the ideal tongue weight is between 850 lbs and 1,275 lbs. Crucially, this tongue weight counts against your truck's payload capacity (GVWR).
Mastering personal transport calculations is vital, just as it is in global logistics. The global order book for new container ships has reached 9.6 million TEU, which is over 30% of the current active fleet. You can discover more about this prolonged period of oversupply in shipping. This highlights that whether you're a weekend hauler or a logistics professional, precise calculations are the bedrock of safe transport.
Common Mistakes That Lead to Overloading
Knowing the formulas is essential, but avoiding common, real-world mistakes is what truly ensures a safe haul. Many dangerous situations arise not from a lack of knowledge, but from simple oversights during loading. Understanding these practical pitfalls is as crucial as knowing your GVWR.
One of the most frequent errors is underestimating payload. People often calculate their cargo weight meticulously but forget to include the weight of all passengers, tools, and gear inside the truck. This oversight alone can easily push a vehicle over its payload limit, straining the suspension and reducing braking effectiveness.
Forgetting About Load Balance
Even with the correct total weight, improper loading of a trailer is a critical mistake. For instance, placing a heavy load, like a pallet of bricks, at the very rear of a trailer creates a dangerous pendulum effect. This lifts weight off the truck's rear axle, causing the trailer to sway uncontrollably at speed.
Actionable Tip: The 60/40 rule is the industry standard for safe loading. Place 60% of the cargo's weight in front of the trailer's axle. This ensures proper tongue weight on the hitch, keeping the entire rig stable and predictable on the road.
A properly balanced load is a non-negotiable requirement for safe transport. It is the primary factor in preventing a controllable drive from turning into a fight to stay on the road.
Overlooking Tires and Insurance
Your tires are the single point of contact between your entire rig and the road, yet they are often the most neglected component. Overloaded or underinflated tires generate excessive heat, which can lead to a sudden and catastrophic blowout, especially at highway speeds.
- Actionable Tip: Before every haul, perform a pre-trip inspection. Check the pressure of all tires (truck and trailer) and inflate them to the manufacturer's recommended pressure for towing, which is often found on the door jamb sticker or in the owner's manual.
Another critical blind spot is insurance. You must confirm your policy covers the type of hauling you are doing. Understanding the differences between commercial vs personal auto insurance is vital if you are using your vehicle for work. An accident is not the time to discover your coverage is inadequate.
These real-world factors have parallels in global transport. As of October 16, 2025, the Drewry World Container Index stood at $1,687 per 40-foot container, a 2% weekly increase. This illustrates how dynamic external factors impact the transport industry at every level. You can discover more insights about these freight market trends on CEVA Logistics.
Answering Your Top Hauling Questions
After running the numbers, practical questions often arise when you're actually ready to transport a load. Applying these formulas in real-world scenarios can be tricky. Here are actionable answers to the most common questions haulers face.
This section serves as a final check to clear up any confusion, allowing you to haul with confidence.
Can Aftermarket Parts Increase My Towing Capacity?
This is the most critical question in vehicle modification. While aftermarket parts like heavy-duty hitches, air suspension bags, or upgraded brakes can improve the feel and handling of your truck while towing, they do not legally or safely increase the manufacturer's towing capacity.
Your vehicle’s GVWR and GCWR are determined by the entire integrated system: frame, engine, transmission, axles, and brakes. The official ratings are based on the weakest link in that system. Upgrading one part does not strengthen the others.
Actionable Insight: The numbers on the sticker in your doorjamb are the only ones that matter for legal and safety compliance. Think of aftermarket parts as tools to help you more safely handle loads within your existing limits, not to exceed them.
What Really Happens if I Exceed My Payload Limit?
The consequences of overloading are severe, ranging from costly mechanical damage to fatal accidents. It is one of the most dangerous and preventable mistakes in transport.
Here is a practical breakdown of the risks:
- Brake Failure: Your braking system is designed for a specific maximum weight. Exceeding it increases stopping distance and can cause brakes to overheat and fail completely, especially on downgrades.
- Suspension and Frame Damage: Overloading places extreme stress on your truck's chassis, leading to costly repairs like broken leaf springs, failed shocks, or a permanently damaged frame.
- Tire Blowouts: Every tire has a maximum load rating. Exceeding it causes the sidewalls to overheat, leading to a sudden blowout at highway speed—a primary cause of towing accidents.
- Loss of Control: An overloaded rear end can lift the front of the truck, reducing traction on the front tires and severely impairing your ability to steer and brake effectively in an emergency.
In addition to these safety risks, being caught overloaded by law enforcement can result in significant fines and legal liability, especially if you cause an accident.
How Do I Get an Accurate Weight for My Truck and Trailer?
Guessing your weight is not an option for safe transport. The only way to know for sure is to use a certified public scale.
The most accessible and reliable method is using a CAT (Certified Automated Truck) scale, found at most large truck stops. For a small fee, you can get precise weights.
Actionable Steps for Weighing Your Rig:
- Weigh the Combined Unit: Drive your fully loaded truck and attached trailer onto the scale to get your Gross Combined Weight (GCW).
- Weigh the Truck Only: Drive off the scale, unhitch the trailer in a safe spot, and drive only the fully loaded truck back onto the scale. This provides your Gross Vehicle Weight (GVW).
- Calculate and Verify: With these numbers, you can confirm your GCW and GVW are below your vehicle's ratings. Subtracting GVW from GCW gives you the exact weight of your trailer.
Does Trailer Braking Affect How Much I Can Tow?
Yes, trailer brakes are a critical safety component for any significant load. In most states, they are legally required on trailers exceeding a certain weight, typically around 3,000 lbs.
Trailer brakes work in sync with your truck's brakes, allowing the entire rig to slow down as a single, stable unit. Without them, the trailer's momentum pushes against your truck during braking, which can lead to jackknifing, loss of control, and dangerously long stopping distances.
While trailer brakes do not increase your truck's official GCWR, they are essential for safely and legally transporting loads anywhere near your vehicle's maximum rated capacity.
